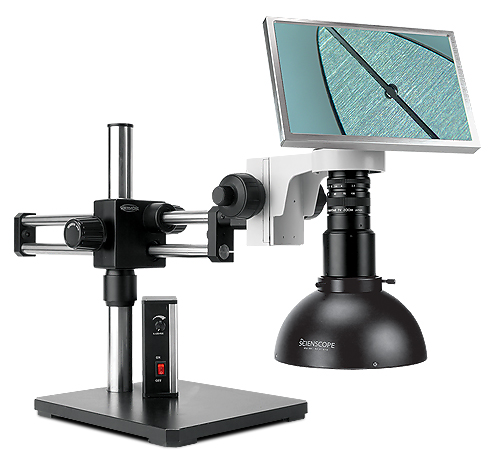

MAC2 Series Macro Zoom Video Microscope Systems

Scienscope MAC2 Series HD Compact Video Inspection Systems:

The revolutionary MAC2 series HD video inspection system from Scienscope merges the latest in HD video technology with the clearest macro video optics to provide an easy to use forward-looking inspection system for your most fatiguing and difficult to see quality processes.

The systems use a forward mounted 720p HD LCD monitor and camera with integrated image capture to an 8GB SD/USB card for comfortable inspection and click-of-a-button image capture. Improve quality, document supplier parts, and reduce eye and neck strain simultaneously.

Video:

Scienscope MAC2 Video System

Key Features:

60 fps Real-Tim High Definition System
Capture image with a PC
720p HD Camera and monitor combination with built-in SD card slot for quick image capture
Navitar Zoom 7000 lens. 2X magnification doubler available (P/N: CC-97-LN1-2X)
Try the NEW defused LED dome for inspection of highly reflective parts
Perfect for delicate assembly applications and inspection

CC-CMC-LCD10 10" HD Camera/Monitor Combination Unit:

1280 x 800 resolution @ 60 fps (24-bit)
CMOS; 1/2.5″
Image capture without a PC
HDMI output with wide screen format
Multiple cross hairs for quick gauging
Super easy auto-white balancing for color accuracy
Sharp Clear Image
Remote Control

CMOS Camera Specifications
Sensor:	CMOS; 1/2.5"
Resolution:	1280 x 800 @ 60 fps (24-bit); 16:10 Aspect Ratio
Frame Rate:	60 fps
Pixel Count:	2 Megapixel
Pixel Size:	3.75 x 3.75 um
Color:	RGB (Individual Adjustment)
White Balance:	Auto/Manual
Exposure:	Auto/Manual
Contrast:	Manual
Memory:	Slot SD (Up To 32GB)
Memory Card:	SD/USB 2.0 Dual-Interface 2GB Card Included
Cross Hair Grid:	Up To 4 Horizontal & 4 Vertical
Power:	Lens Mount 5-12VDC C-Mount
