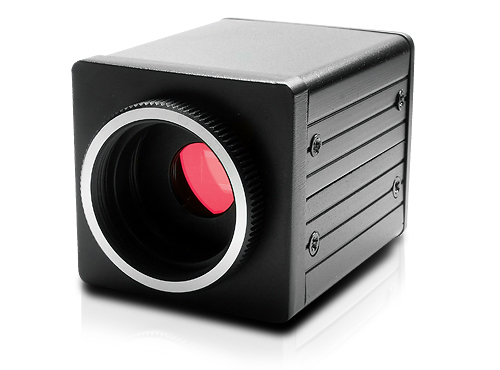

The Scienscope CC-VIE-USB5 is a 5 megapixel digital color USB microscope camera for machine vision or microscopy. The VIECAM-5MP is fully Direct Show compliant and installs without drivers on any Windows XP/7 computer with 32 and 64 bit compatibility. A single cable simplifies connecting the camera to any desktop or laptop computer with a USB 2.0 port.
Super Image Quality & Lag-free Performance
• 5 Megapixel CMOS sensor delivering 2592 x 1944 Image Resolution
• Capture Still frame images or record movie clips in seconds
• Selectable Digital Zoom Live Preview ½ X, 1/3 X, 1st, 2X, 3X, 4X, and Fit to Window
• Auto Exposure, White Balance and Camera Controls
• One Button Click within Video Image Express Essential Software to change resolution and speed (Fast/Sharp)
Compatible with your existing system
• 5Connects directly to any laptop or desktop computer with USB 2.0 port
• Connect to any C mount or CS mount
Application
• Microscopy
• Medical Design
• Aerospace
• Metal Working
• Electronics
• Automotive
• Injection Molding
The VIECAM-5MP camera now includes the powerful Video Image Express – Essentials Version of the software. This will provide full control over the camera, an easy to use interface for image capture, and advanced markup and labeling on the “Live Image” . You can View, Markup, Capture, and Email in seconds!
Software Features
• Full screen live video display in high resolution
• Quick image capture in jpg, bmp, and tif format
• Measures diameter, cracks, & other defects
• On screen reticle for Go/No Go analysis
• Easy annotation of text and arrow
• Instant email communication with printout
The Advantage
A common problem with high resolution cameras is that when you go up in resolution you go down in speed. When the screen refresh rate is slow it is hard to frame a shot and capture at high resolution. When used with VIE, the VIECAM-5MP solves this problem with its Fast/Sharp feature. This feature allows you to frame the “Live Image” at fast speed and with one click quickly capture a high resolution in bmp, jpeg, or tiff format.
| TECHNICAL SPECIFICATIONS | CC-VIE-USB5 |
| Sensor & Size | CMOS; 5.70 mm x 4.28mm (1/2" type) |
| Pixel | 5 mega pixel (2.2 x 2.2 µm) |
| Resolution | 2592 x 1944 |
| Interface/Power | USB 2.0 |
| Frame rate | 3 fps (max. full frame); 20 fps (800 x 600) |
| Dynamic range | 71.1 dB |
| S/N ratio | 38.1 dB |
| Min. Illumination | 0.5 lux (with IR filter removed) |
| Bits per pixel | 8 (per color component) |
| Shutter | Rolling, progressive |
| Gain | Manual or automatic |
| Lens mount | C or CS |
| Camera housing | anodized aluminum |
| Camera body | 45 (H) x 45 (W) x 58 (D) mm |
| Camera weight | 128g (w/out lens) |
| Mounting | 1/4" threaded socket |
System Requirement
Pentium IV 1.5 GHz or faster, Windows XP/VISTA/7 (32 or 64 bit), Internet Explorer 5.0 (or later) installed, USB 2.0 Port, 1+ GB of Free Memory, Video card with 64 MB of video RAM, minimum 800 x 600 resolution at 16-bit color.
